Organic emitters for solid state lighting

Journal of Solid State Lighting20152:9

https://doi.org/10.1186/s40539-015-0028-7

Received: 8 February 2015

Accepted: 1 September 2015

Published: 18 September 2015

Abstract

White organic light emitting diodes (WOLEDs) have gained considerable attention of academic and industrial research communities as promising alternative to incandescent lamps, fluorescent tubes and inorganic LEDs for low energy consumption lighting applications. WOLEDs are expected to become one of the next generation lighting sources because of their high color tunability and color quality, which can be easily achieved by proper chemical design of organic electroluminescent materials. Contrary to their inorganic counterparts, WOLEDs also bear the distinctive feature of being available as flexible and large area devices.

Over the last decades, a lot of efforts have been spent on defining suitable strategies to highly efficient WOLEDs based on the use of properly tailored organic emitters. Here we survey the main chemical approaches to white electroluminescence from organic light emitting materials, highlighting strong and weak points of each strategy. Current research on new hybrid white light emitting devices based on the combination of inorganic LEDs and organic down color converters is also reviewed by some representative examples.

Keywords

White OLEDs White electroluminescence Organic fluorescent molecules Organic conjugated polymers Phosphorescent organometallic complexes Organic down converters LUCO dyes

Introduction

Solid state lighting (SSL) sources based on light emitting diodes represent the new generation of highly efficient illumination systems with significant impact on energy saving.

For organic and inorganic light emitting diodes (OLEDs and LEDs) the luminous power efficiency, defined as the output light power from a device per electrical power input, has respectively reached and overcome the value of 100 lm W−1 [1, 2], which is comparable to that of fluorescent lamps (65–100 lm W−1) and much higher than that of incandescent light bulbs (15 lm W−1) [3, 4].

OLEDs generate light relying on electroluminescence from organic or organometallic molecules. They generally have a multilayer architecture in which a thin film of one or more light emitting materials is sandwiched between two thin electrodes, one of which at least must be transparent to light. Further charge transporting (HTL, ETL) or blocking (HBL) layers are deposited between the electrodes and the emissive zone, in order to improve device performance.

Applying a voltage between the electrodes, electrons and holes are injected from the cathode and the anode respectively and, under the influence of the external electric field, they easily across the charge transporting layers and recombine in the emitting material, forming electron-hole pairs (excitons) responsible for light generation by radiative decay.

Contrary to the inorganic counterpart, WOLED technology allows fabrication of large area, flexible and variously shaped lighting sources, due to the easy film processing of organic electroluminescent materials on substrates, such as plastics, with various techniques as vacuum thermal evaporation, spin coating or casting from solution. Vacuum thermal evaporation represents the layer deposition method currently used in close to 100 % commercially available OLED displays and lighting products: it allows higher layer complexity and stability with respect to the layer processing techniques from solution which, on the other side, have gained the attention of materials scientists because of their lower cost.

Other appealing features of WOLEDs are the possibility to achieve high brightness at low operating voltage, as well as to finely tune light color quality by tailored molecular design of organic light emitting materials [57].

Although LED-based lighting technology is more mature than the organic alternative, which must still fulfill requirements of performance and cost for being competitive in general illumination market, WOLED efficiencies have been predicted to rapidly increase in the next years, reaching values of 200 lm W−1 similar to those expected for inorganic LEDs [8].

The possibility to lead WOLEDs to the level of broadly diffused lighting sources is also related to the development of new organic emitting materials with improved stability and efficiency: therefore, research efforts in the design, synthesis and combination of efficient organic and organometallic emitters represent the heart of the progress of WOLED technology.

Moreover, in the next two years, a new hybrid technology based on the deposition of organic luminescent color converters (LUCO) on top of an inorganic LED is gaining momentum: this approach allows to combine high efficiencies typical of inorganic LEDs with the high color quality and cheap processing techniques of organic emitters. Therefore, it is expected to strongly influence the future of commercial lighting sources.

Review

Main strategies to white electroluminescence from organic emitters

The basic principle for generating white electroluminescence lies in the combination of moieties that simultaneously emit light of two complementary (orange and blue) or three fundamental (red, green and blue) colors. However, combination of emitters of different colors requires proper control of energy transfer processes that funnel excitons from the highest energy emitters (blue) to the lowest ones (orange/red). In order to have simultaneous light production from all emitters, a fine control of their relative amount and interaction is necessary on both the molecular and the device scale.

White electroluminescence from organic materials can be pursued by various approaches mainly classified into two categories [2, 9]. The first one involves the combination of two or more emitters of different colors that can be (1) confined in different stacked layers or (2) blended in a single emitting layer of WOLED. Further approaches rely on a single material whose emission, covering a significant part of the visible spectrum, results (3) from the excited states of individual molecules and of their aggregates (excimers and electromers) in the solid state, or (4) from different color emitting moieties covalently bound in a single macromolecular structure. Finally, white light can be also generated by (5) a blue inorganic LED bearing an external down conversion layer of organic dye.

Aside from the approach used, organic materials emit light by fluorescence radiative decay, typical of π-conjugated polymers and organic small molecules [10, 11], or by phosphorescence occurring in organometallic complexes of Ir, Pt, Ru, Os and some lanthanides [12, 13]. These different radiative decay pathways affect device performances. In particular, while fluorescent materials usually convert into light only singlet excitons (i.e. 25 % of all excitons generated by electron-hole recombination), phosphorescent organometallic complexes generate light from both singlet (25 %) and triplet (75 %) excited states, leading to higher device efficiencies [14]. However, very recent studies have demonstrated the possibility to achieve high external quantum efficiencies also for WOLEDs made with some organic fluorophores having thermally activated delayed fluorescence (TADF), due to the reverse intersystem crossing (RISC) of triplet excited states into singlet excitons [15].

Some representative examples highlighting advantages and issues of the various approaches to white organic electroluminescence will be discussed in the next paragraphs and, although their selection has not been made on the basis of the best performances affordable by each approach, the whole data set of devices here reported is summarized in Table 1.
Table 1

Data set of devices

Ref.

Figure

ηext (%)

Power efficiency (lmW−1)

Luminous efficiency (cdA−1)

CRI

CCT (K)

CIE

18

1a

-

-

0.46, 0.90

-

-

(0.324, 0.337)

19

1b

20.1

41.3

-

85

-

(0.38, 0.39)

20

2

17

34.1

45.6

-

-

(0.33, 0.41)

21

3

21

-

-

-

-

(0.31, 0.33)

22.9

-

-

-

-

(0.39, 0.43)

22

4

10.5

3.31

-

13

5899

(0.33, 0.31)

23

5

3.1

-

3.7

-

-

(0.32, 0.33)

24

6

-

8.9

9.8

91

4632

(0.36, 0.37)

25

7

3.2

-

12.5

86

-

(0.34, 0.34)

26

8

19.1

20.3

42.9

55

4146

(0.395, 0.452)

27

9a

0.35

-

-

-

-

(0.31, 0.42)

28

9b

15.9

12.6

37.8

69

-

(0.46, 0.47)

29

10

3

5.14

5.4

86

-

(0.33, 0.33)

30

11a

3.8

5.75

8.99

-

-

(0.35,0.34)

31

11b

-

-

0.71

-

-

(0.31, 0.39)

32

12a

5.4

-

10.7

-

-

(0.37, 0.30)

33

12b

3.7

7.2

8.2

82

-

(0.35, 0.38)

34

13

6.28

7.73

16.62

-

-

(0.33, 0.36)

35

14

-

2.4

6.7

88

-

(0.33, 0.35)

37

15

-

13.6

-

-

5137

(0.31, 0.31)

38

16

90

-

-

80

5980

(0.32, 0.33)

39

17

45.4

123.8

-

-

-

(0.32, 0.33)

- unreported

Approach (1): WOLEDs based on emitters stacked in a multilayer structure

White electroluminescence can be achieved by stacking multiple layers of fluorophores or phosphors which emit light of complementary (blue and orange) or fundamental (red, green, blue) colors. These emitters are generally dispersed as “dopants” in charge transporting host materials.

The main advantages of multilayer WOLEDs are that the thickness or dopant concentration of each layer can be individually optimized to improve the white color purity. Nevertheless, the multiplicity of layers adds complexity to device manufacture and the high overall thickness of the emitting zone leads to operating voltages superior to those required for WOLEDs based on single emitting units. Other drawbacks are that the emission color of device is voltage dependent and, in the case of solution processed stacked WOLEDs, the successive deposition of each layer is detrimental to the surface morphology of the preformed emissive layer which can be dissolved and mixed to the upper one. A possible way to overcome this issue is to use materials with different solubility and to stack them by orthogonal solvents [16, 17].

For instance, a white organic light emitting device can be obtained stacking the blue emitting copolymer LEP deposited by the hydrophobic mesitylene solvent on the top of an hydrophilic layer of the orange emitting iridium complex iTMC (Fig. 1a) [18].
Fig. 1

WOLEDs made with a blue and orange, b blue, green and red stacked emitting layers

White light is also reported for devices based on three stacked emissive layers of the red (PPQ)2Ir(acac), green Ir(ppy)3 and blue FIrpic phosphorescent iridium complexes doped in the same host material (Fig. 1b) [19]. In this case, external quantum efficiency up to 20 % and desired output color balance can be achieved by controlling both the thickness and the relative position of the emitting layers.

Very high performances have been recently recorded also for WOLEDs made with stacked layers of red, green and blue emitting fluorophores showing thermally activated delayed fluorescence (TADF) [15]. In TADF, triplet excitons of a fluorescent dye can be up-converted to singlet excitons by efficient reverse intersystem crossing (RISC), this preventing non radiative decay from the triplet states. In particular in 2014, Nishide et al. designed a multilayer WOLED device in which three stacked emitting layers are used: (1) a layer of the TADF green emitting molecule 4CzPN doped in mCBP [3,3-di(9H-carbazol-9-yl)biphenyl] host, (2) a layer containing both 4CzPN and the red TADF dopant 4CzTPN-Ph in mCBP and (3) a layer of the TADF blue dye 3CzTRZ in PPT [2,8-bis(diphenylphosphoryl)dibenzothiophene] host (Fig. 2) [20]. The resulting device has CIE coordinates of (0.30, 0.38) and external quantum efficiency over 17 %.
Fig. 2

a Schematic drawing and b real picture of WOLED made with stacked layers of blue, red and green TADF fluorophores. b reproduced with permission from ref. [20]. Copyright 2014. AIP Publishing LLC, New York

In 2015, Cho et al. have also reported highly efficient WOLEDs based on the blue DCzIPN TADF dye acting both as a blue emitter and a host for the yellow iridium phosphor PO-01 (Fig. 3) [21]. In particular, the device architecture includes three stacked layers of DCzIPN, the central one embedded with the yellow emitting PO-01 complex (Fig. 3). Interestingly, the authors report that it is possible to manage electroluminescence from warm to cool white color by properly changing the thickness of the central yellow emitting layer. High external quantum efficiencies (21.0 % and 22.9 %) have been observed for the cool and the warm white light emitting devices, respectively showing CIE coordinates (0.31, 0.33) and (0.39, 0.43).
Fig. 3

Schematic drawing of WOLED made with stacked layers of blue and yellow TADF fluorophores

Another approach to efficient and stable white electroluminescence consists in stacking two or more single devices which emit light of different colors. Despite their complex manufacturing process, these architectures, also known as tandem WOLEDs, have the advantage to achieve high brightness at low current density.

For instance, CIE coordinates (0.33, 0.31) and luminance of 4450 cd/m2 are observed just at 17 V operating voltage for the tandem WOLED reported in Fig. 4. This device has a multilayer architecture in which an interfaced anode-cathode layer (ACL) is not connected to the power source and acts as the electron injector for the bottom device relying on the blue emission of the FIrpic iridium complex and as the hole injector for the top OLED made with the red [Btp2Ir(acac)] emitter [22].
Fig. 4

White electroluminescence from stacked red and blue OLEDs

Approach (2): WOLEDs bearing multiple emitters in a single layer

White electroluminescence from a single emitting layer device can be achieved by two methods: blending polymers with two complementary or three fundamental emission colors, or doping a wide energy gap host material with small percentages of lower energy phosphorescent emitters. Both methods are suitable for low cost large area WOLED fabrication since combining multiple color emission in a single layer allows easy processing from solution or evaporation techniques. However, a careful control of morphology and composition of the emitting layer is fundamental to manage energy transfer processes responsible for white light output. The major drawback of this approach versus that based on stacked emitting layers is that it is more difficult to compensate the differential aging of emitters blended with a precise molar ratio in a single emitting layer. In particular, in WOLEDs made of binary or ternary blends, the control of emitters ratio is less critical than in doped systems but, their efficiency and brightness are lower since singlet emitters are generally used.

A representative example of the first method is a WOLED made of a binary blend of blue and orange-red emitting polymers (PFO and MEH-PPV reported in Fig. 5) [23].
Fig. 5

Chemical structures of the blue PFO and orange MEH-PPV emitting polymers

In particular, to get white light by simultaneous emission of both polymers, the energy transfer from PFO to MEH-PPV must not be complete. This occurs for blends with MEH-PPV:PFO composition in 5-28 wt-% range which have morphology characterized by phase segregated nanocrystalline PFO domains and amorphous MEH-PPV domains. Indeed, for higher MEH-PPV percentages, the blend is amorphous and complete energy transfer from PFO to MEH-PPV leads to the sole orange-red electroluminescence.

A single layer WOLED with excellent color rendering index and stability has been also recently obtained by blending in proper ratio blue (PPF-SO), green (PPF-SO-BT) and red (PPF-SO-DHTBT) light emitting copolymers bearing dibenzothiophene-S, S-dioxide moieties (Fig. 6) [24]. In this case white light stability has been attributed to the fact that the three copolymers have very similar chemical structures and do not show tendency to crystallization and phase separation.
Fig. 6

White electroluminescence from WOLED made of a ternary blend of blue, green and red emitting copolymers

In WOLEDs based on a single emitting layer of a host-dopant guest system, the host is responsible for charge transport and, in some cases, for blue emission while phosphorescent dopants emit light by direct charge trapping or energy transfer from the host. For instance, an efficient WOLED has been fabricated by doping the blue emitting BlueJ polymer with the green [Ir(PBPP)3] and the red [Ir(PIQ)3] iridium complexes (Fig. 7) [25]. Also in this case the role of the emitting layer morphology is crucial to achieve white electroluminescence: indeed, doping iridium complexes in the sole BlueJ does not lead to white light since the poor miscibility of these materials completely prevents energy transfer from the blue host to the guests. This drawback is overcome using a further non emitting polymer, the polyvinylcarbazole (PVK), which improves either hole mobility and miscibility of the other components, thus generating a microphase-separated system that favors a cascade partial energy transfer from the PVK/BlueJ matrix to the two iridium phosphors.
Fig. 7

a Photo of WOLED made doping green Ir(PBPP)3 and red Ir(PIQ)3 phosphorescent emitters in a single host layer composed of blue emitting BlueJ and hole transporting PVK polymers. b Chemical structures of materials used in the emitting layer. a reproduced with permission from ref. [25]. Copyright 2006, WILEY-VCH Verlag GmbH & Co. KGaA, Weinheim

Moreover, white-yellow electroluminescence suitable for lighting applications has been achieved by doping PVK with proper percentages of the sky-blue FIrpic, the yellow Ir(DPA-Flpy)3 complex and the electron transporting OXD-7 material (Fig. 8) [26].
Fig. 8

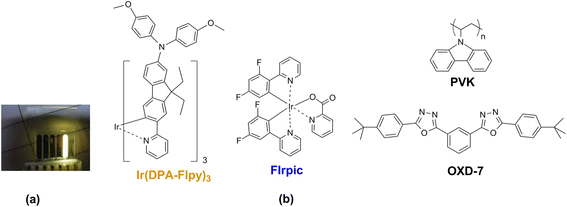

a Photo of WOLED based on a single PVK/OXD-7 host layer doped with blue FIrpic and yellow Ir(DPA-Flpy)3 iridium phosphors. b Chemical structures of materials used in the emitting layer. a reproduced with permission from ref. [26]. Copyright 2009, WILEY-VCH Verlag GmbH & Co. KGaA, Weinheim

Approach (3): WOLEDs based on single molecular emitters

The development of devices composed of a single white emitting molecular component is strongly desirable to reduce costs and simplify manufacture, as well as to avoid the accurate control of molar ratio of multiple emitters used in the approach (2).

A possible way to attain this target involves the use of molecules that simultaneously emit blue light from their individual excited state and red-orange light from their excited aggregates (excimers or electromers) generated in the solid state. In this approach, despite the less complex composition of the emitting layer, since only one species is responsible for both blue and orange-red light, possible drawbacks are the low efficiency and the difficult molecular design of the emitter.

For instance, a terthiophene based emitting compound (Fig. 9a) bearing methyl and mesityl substituents has been found to emit white light when used as the sole active material in a very simple device architecture (ITO/HTL/active layer/cathode) [27]. White electroluminescence results from the superimposition of the blue-green terthiophene monomer emission and the red emission of an excimer having a well-defined cross-like conformation which is due to the sterical hindrance existing between the methyl and the mesityl groups of two neighbouring monomers that form the excimer. In particular, the presence of both methyl and mesityl groups in proper positions of the monomer is fundamental to get white light because, in their absence, the cross-like excimer is not generated and no red emission can be observed in the aggregate state.
Fig. 9

White WOLED based on a a terthiophene molecule and b a platinum phosphorescent complex. a and b adapted with permission from ref. [27] and ref. [28]. Copyright 2005 and 2007, WILEY-VCH Verlag GmbH & Co. KGaA, Weinheim

Warm white electroluminescence has been also achieved by a blue phosphorescent platinum complex (FPt in Fig. 9b) that, due to its square planar structure, generates orange emitting excimers when incorporated in a host non emitting layer [28].

Besides the use of molecules that simultaneously emit light from their individual excited state and their excited aggregates, white electroluminescence can be also achieved by molecules showing completely different emission color from their neutral and protonated or deprotonated forms. In particular, a molecular dyad with a blue emitting neutral form composed of an electron donor (D) and a weakly electron acceptor (A) unit can be converted, by controlled acid stimulation, into its orange emitting protonated form [29]. This significant change of color emission is due to a proton induced enhancement of the electron accepting ability of the A unit that strengthens intramolecular charge transfer from D to A inside the molecular dyad. White light is the result of simultaneous blue and orange emission from the neutral and the protonated forms by proper control of doped acid amount which regulates conversion from the blue to the orange dye structures. WOLEDs fabricated in 2013 by Liu et al. doping the emitting layer of the neutral blue dye in Fig. 10 with a small amount of camphorsulfonic acid (CSA) showed external quantum efficiency of 3 %, which is a significant result if we consider the simplicity of both material design and device fabrication [29].
Fig. 10

White electroluminescence by controlled protonation of a blue fluorophore. Adapted with permission from ref. [29]. Copyright 2015. The Royal Society of Chemistry

Approach (4): WOLEDs based on polymers bearing multiple color emitting moieties

White electroluminescent copolymers bearing singlet or triplet emitting units of different colors are of particular interest since they allow to avoid interfacial mixing observed for emitters stacked in multiple layers approach (1) and intrinsic phase separation typical of blends or host-guest systems used in the approach (2). However, this class of materials is synthetically challenging since a very careful control of relative amount and connection of the single emitting units is fundamental to manage energy transfer processes occurring in the polymer. Moreover, efficiencies reported so far for devices based on this approach are generally lower than those observed for multilayer stacked WOLEDs.

The most used strategy for the synthesis of white emitting copolymers relies on the covalent linking, in the main chain or as side groups, of light emitting moieties with complementary or fundamental colors. Some representative structures of white electroluminescent copolymers bearing blue and orange or blue, red and green fluorescent units combined in the main chain are reported in Figs. 11a and b, respectively. In both cases, the molar ratio of monomers plays a key role in control of polymer emission [30, 31].
Fig. 11

Chemical structures of white electroluminescent copolymers with a blue and orange or b red, green and blue emitting units in the main chain

High efficiencies have been found for white emitting copolymers bearing phosphorescent complexes in the main chain or as pendant groups [32, 33]. For instance low percentages of a red emitting osmium complex and green fluorescent benzothiadiazole units have been tethered to the main chain of a blue emitting polyfluorene (Fig. 12a). Red iridium phosphors have been also grafted as pendant groups to a similar polymeric skeleton made of blue fluorene type and green benzothiadiazole emitting units (Fig. 12b).
Fig. 12

Chemical structure of white electroluminescent copolymers bearing phosphorescent units a in the main chain or b as pendant groups

Hyperbranched white emitting copolymers composed of blue polyfluorene arms and orange star shape cores have also shown power efficiency higher than that observed for the linear counterparts since their branched structure prevents interchain interactions which induce emission quenching in linear polymers (Fig. 13) [34].
Fig. 13

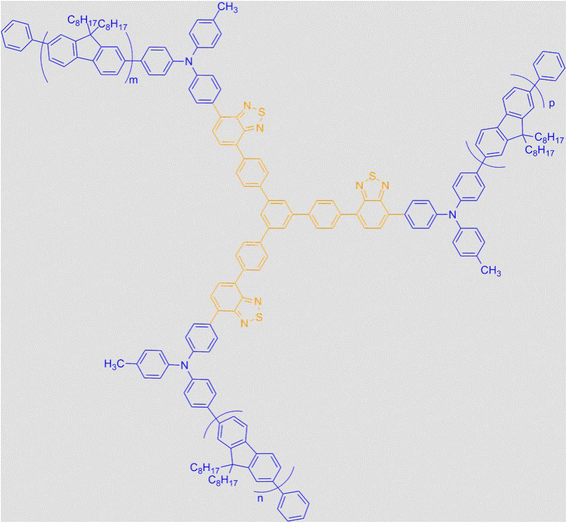

Chemical structure of white electroluminescent star shape copolymer

Less conventional systems have been also explored. For instance, a white electroluminescent network film has been recently used for the first time as the emissive layer in highly efficient and color-stable WOLEDs. In particular, during WOLED fabrication, three organic red, green and blue emitters mixed in electrolyte solution have been deposited onto the device electrode and then oxidized by in situ electrochemical copolymerization strategy leading to a cross-linked polymer network film (Fig. 14) [35]. This film shows excellent structural and phase stability and no phase separation occurs between monomers since, due to their random oxidation, they are fixed and uniformly distributed in the cross-linked structure. In this way, WOLEDs with bright electroluminescence covering the whole visible range have been obtained.
Fig. 14

Schematic representation of in situ electrochemical copolymerization technique. Adapted with permission from ref. [35]. Copyright 2014, WILEY-VCH Verlag GmbH & Co. KGaA, Weinheim

Approach (5): White light emission from inorganic LEDs and organic down converters

To date, white inorganic LEDs have external quantum efficiencies higher than WOLEDs and are generally composed of a blue emitting inorganic LED coated by yellow or green-red inorganic color converters such as rare-earth element containing materials [36]. Despite their high stability and high color conversion efficiency, inorganic color converters suffer from high costs, non-uniform dispersion, difficult color tuning and relatively poor emission in the green and red spectral regions, resulting in typically low rendering of saturated colors.

An alternative approach to white electroluminescence, which is currently gaining particular attention by the scientific community, consists in coating a blue inorganic LED with a layer of one or more organic luminescent color converters (organic LUCO dyes). These hybrid device architectures combine the high efficiency of inorganic LEDs with the high color rendering index, good color tunability and potentially low manufacturing costs of organic converters.

In particular, the inorganic LED is used as both the blue emitting component and as the excitation source for organic LUCO dyes having broad emission spectra in the yellow or green-red visible region: the combined emission from the light source and the converter results in good quality white light output.

In order to tolerate the long lifetimes and high operational temperatures of the pump LEDs, organic color converters must have high temporal, thermal and photochemical stability. Moreover, to reduce their aggregation and emission quenching in the solid state, they are generally embedded into a non-emissive polymeric matrix.

For instance, white hybrid light emitting devices with CIE coordinates (0.34, 0.31) have been recently fabricated by depositing, on a blue inorganic LED, a solution of the yellow dye [BODFluTh]2FB (Fig. 15) in 1,4-cyclohexanedimethanol divinyl ether (CHDV) containing a photoacid generator [37]. Under UV light exposure, CHDV is cured in a non emissive matrix which encapsulates the organic dye and generates a smooth solid dome on top of the LED chip. The resulting architecture has luminous efficiency four fold higher than the bare blue LED component, this showing that integration with the organic down converter influences both the final emission color and performances of the hybrid device.
Fig. 15

Picture of the hybrid white LED based on the yellow organic LUCO dye [BODFluTh]2FB

In 2014, white light emitting hybrid devices with high color rendering index and efficiency over 90 % have been also fabricated by a simple and fast immersion procedure of a commercial blue inorganic LED in a mold containing a partially pre-polymerized viscous mixture of methyl-methacrylate, the blue Coumarin 30 and the red DPPth organic down converters (Fig. 16) [38]. In this way, a dye doped polymethyl-methacrylate (PMMA) shell is generated by free radical polymerization reaction directly on top of the blue LED. This strategy is particularly appealing since it can be applied to commercial LEDs with light bulb design and can be easily scaled up to industrial lighting sources production.
Fig. 16

Picture of a hybrid white LED with light bulb design obtained by coating a commercial blue LED with a PMMA matrix doped with Coumarin 30 and DPPth LUCO dyes. White LED picture reproduced with permission from ref. [38]. Copyright 2014. Nature Publishing Group

The use of a polymer matrix which prevents the emission quenching of LUCO dyes is not always necessary: this is the case of organic down converters as the yellow dye BTPETD (Fig. 17) showing aggregate induced emission [39]. The aggregation of the dye molecules in thin films does not quench and, on the contrary, it enhances their photoluminescence in the solid state. Therefore, a layer of BTPETD can be directly deposited on top of a blue LED by drop casting from toluene solution. Hybrid white LEDs with CIE coordinates (0.32, 0.33) can be fabricated by carefully adjusting the thickness of this down conversion layer. Final encapsulation of the resulting hybrid device with an epoxy coating is anyway performed to improve their lifetime and stability.
Fig. 17

Chemical structure of the yellow BTPETD dye showing aggregate induced emission

Conclusions

Considerable scientific efforts have been devoted so far to the research of organic and organometallic emitters for highly efficient white light emitting devices. WOLED technology may open a new concept of indoor/outdoor illumination architectures having the distinctive feature to be manufactured as flexible lighting sources with various shapes that emit good quality and uniform white light with low energy consumption.

Various approaches are available to achieve white electroluminescence from organic systems: among them, WOLEDs based on the combination of multiple emitters appear closer to practical applications with respect to those ones relying on more synthetically challenging single white emitting materials.

On another side, very recent studies have also demonstrated the possibility to combine highly efficient commercial inorganic LEDs with organic color converter dyes having high color rendering index. This new hybrid technology is readily expected to have deep impact on lighting market, due to lower fabrication costs with respect to fully inorganic white LEDs.
