Bi3+/Eu3+ co-activated Sr3Lu2(BO3)4 was successfully synthesized via a solid state reaction. The optimal concentration of Bi3+,Eu3+ and Bi3+/Eu3+ are 1 mol%, 60 mol% and 1 mol%/20 mol%, respectively. The emission spectra of Sr3Lu2(BO3)4:Bi3+, Eu3+ gives three peaks located at 405 nm, 489 nm which were attributed to Bi3+ S6 (blue) and C2 (green) site symmetry, respectively and 610 nm which was ascribed to Eu3+ (5D0 → 7 F2) transition. The emission intensity of Bi3+ decreases with increasing Eu3+ content which indicates that a efficient energy transfer occurred in the Sr3Lu2(BO3)4 host. The relative intensity of Sr3Lu1.79(BO3)4:0.01Bi3+,0.20Eu3+ excited at 327 nm and 370 nm was remarkably enhanced by 201% and 265%, respectively, via the energy transfer from Bi3+ to Eu3+. The results indicate that Sr3Lu2(BO3)4:Bi3+, Eu3+ is a potential novel red-emitting phosphor for UV LED applications.
Recently, there has been a rapid increase in the number of researches on white-light emitting diodes (W-LEDs) and it has begun replacing conventional lighting sources due to its advantages such as high brightness, high energy efficiency, low power consumption, longer working performance and low environmental risk -. The common fabrication of W-LEDs involves a blue-emitting InGaN chip and a yellow emitting phosphor Y3Al5O12:Ce3+ (YAG) ,,. However, this combination displays low color rendering index (Ra) of ~80 and high color temperature which is due to the insufficiency of red emission in the visible spectrum . Thus, it is very essential to search for new red phosphors that can be efficiently excited at around 400 nm .
Eu3+ rare earth ions have drawn much attention of scientists in obtaining a red-emitting due to its lowest excited level 5D0 of the 4f6 configuration which is located below the 4f65d configuration and it principally displays very sharp red emission lines at 5D0-7 F2 transition around 610 ~ 618 nm ,. Most of the red-emitting phosphors are efficiently excited at around 393 nm , originating from 7 F0-5 L6 transition which is parity forbidden therefore it exists as a sharp peak and cannot absorb the excitation energy efficiently. In order to improve and broaden the excitation spectrum of Eu3+ ions, one of the common strategies is by introducing Bi3+ as a sensitizer. Liu et al.  found that the luminescence intensity and quantum efficiency of ZnB2O4:Bi3+, Eu3+ phosphors were much higher than that of ZnB2O4:Eu3+ phosphors by co-doping Bi3+ into the host via an energy transfer process. The optimized-composition of ZnB2O4:Eu3+, Bi3+ was even superior to that of commercial phosphor, La2O2S:Eu3+. Zhou et al.  reported that the enhanced luminescence properties and energy transfer mechanism of Ca3SnSi2O9:Bi3+, Eu3+ phosphors by a solid state reaction. Zhu et al.  investigated the energy transfer phenomena of Bi3+/Eu3+ co-doped Ca10(PO4)6 F2 phosphors for UVLED applications. Park et al.  discovered that with increasing the content of Bi3+ on Eu3+/Bi3+ co-doping YVO4:Eu3+ phosphors, it demonstrate a shifting of the excitation band to a longer wavelength due to the energy transfer from Bi3+ to Eu3+. Single-phased phosphors have attracted much attention in the fabrication of white LED and borate compounds are good candidates because they can be easily synthesized and are chemically stable. To the best of our knowledge, spectral and laser properties of Er:Yb Sr3Lu2(BO3)4 have been reported and it have manifested good spectral properties. Moreover, a study was carried on the luminescent characteristics of Sr3(RE)2(BO3)4:Dy3+ (RE = Y, La, Gd) for white LED applications and provided a significant evidence.
To the best of our knowledge, there has been no reported study on the luminescence properties of Bi3+/Eu3+ co-doped Sr3Lu2(BO3)4. In this study, crystal structure, phase purities as well as luminescence and energy transfer mechanism of Sr3Lu2(BO3)4:Bi3+, Eu3+ phosphors were firstly investigated. The results demonstrate that Sr3Lu2(BO3)4:Bi3+, Eu3+ is a potential red-emitting phosphor for UVLED applications.
Polycrystalline powder samples were prepared via a solid state reaction. The starting materials used were SrCO3 (99.99%, Aldrich), H3BO3 (99.99%, Strem), Lu2O3 (99.99%Aldrich), Eu2O3 (99.99%, Aldrich) and Bi2O3 (99.99%Aldrich) were weighed in stoichiometric ratios and were homogeneously mixed and ground in agate mortar then transferred in alumina crucibles and sintered at 1200°C for 8 hours in air. The products were cooled down to ambient temperature and pulverized for further analysis.
The phase purity of the as-synthesized samples were characterized using X-ray diffraction (XRD) patterns with Cu Kα radiation (λ = 0.15418 Å) generated at 45 kV and 30 mA. Data were collected in the 2θ range of 10–80° with a scan speed of 5°/min. The PL/PLE spectra of Bi3+/Eu3+ co-doped Sr3Lu2(BO3)4 phosphors were measured at room temperature and recorded by a Spex Fluorolog-3 spectrophotometer equipped with 450 W Xenon light source. All the spectra were measured with a scan rate of 150 nm min−1. The Commission International de I’Eclairage (CIE) chromaticity coordinates were measured by a Laiko DT-101 color analyzer equipped with a CCD detector (Laiko Co., Tokyo, Japan).
Results and discussion
XRD and crystal structure analyses
The XRD patterns of Sr3Lu2(BO3)4 doped with (a) 1 mol% Bi3+, (b) 60 mol% Eu3+ and (c) 1 mol% Bi3+/20 mol% Eu3+ and (d) standard pattern of ICSD 10213 are shown in Figure 1. The results show that the as-synthesized Sr3Lu2(BO3)4 and Bi3+, Eu3+ or Bi3+/Eu3+ co-doped Sr3Lu2(BO3)4 are in well consistent with standard pattern of ICSD 10213, indicating that single-phased phosphors were successfully obtained by a solid state reaction. In addition, there are no notable peak shifts white doping Bi3+ and Eu3+ ions into the host, which demonstrates that Bi3+ and Eu3+ ions are completely dissolved in the host lattice as a solid solution by occupying the Lu3+ sites due to their similar ionic radii of 0.977 Å, 1.11 Å and 1.07 Å for Lu3+, Bi3+ and Eu3+, respectively ,. The host phosphor belongs to Sr3RE2(BO3)4 (RE: Gd3+, Y3+, La3+ and Lu3+) system which has an orthorhombic structure with Pc 21n space group. The lattice parameters of Sr3Y2(BO3)4 has lattice parameters of a = 8.701(1) Å, b =15.984(8) Å, c = 7.381(2) Å and α = β = γ = 90° ,. Furthermore, the longer distance among the rare-earth ions in the crystal structure of Sr3Y2(BO3)4 results in higher doping concentration of Eu3+.
Figure 1(e) displays the crystallographic structure. The Sr3Lu2(BO3)4. Lu3+ ions occupy two distinct crystallographic sites Lu1 and Lu2 and each Lu3+ has an eight-fold coordination that forms LuO8 polyhedra. The bond valence of Lu1 is stronger compared to Lu2, therefore Bi3+ and Eu3+ occupies the Lu3+ site. Figure 1. XRD patterns of Sr3Lu2(BO3)4 doped with (a) 1 mol% Bi3+, (b) 60 mol% Eu3+, (c) 1 mol% Bi3+, 20 mol% Eu3+, (d) ICSD 10213 and (e) crystal structure of Sr3Lu2(BO3)4.
Photoluminescence properties of Sr3Lu2(BO3)4:Bi3+phosphors
The PL and PLE of spectra of Sr3Lu1.8(BO3)4:0.20Bi3+ phosphor are illustrated in Figure 2. When the samples are excited at 327 nm and 335 nm, the emission spectra displays three broad bands centering at 356 nm, 405 nm emitting blue color and 485 nm emitting green color however if the phosphors are excited at 370 nm, the emission spectra contains one broad band with peak maximum at 404 nm. Varying the excitation wavelengths from 320 ~ 370 nm greatly affects the emission spectra of Sr3Lu2(BO3)4:×%Bi3+. Therefore, the energy distribution of blue and green emission is highly dependent on the excitation wavelengths.
The excitation spectrum monitored at 492 nm (green emission) consists of two peaks at 326 nm and 342 nm respectively meanwhile the excitation spectrum monitored at 410 nm (blue emission) consists of a weak broad band at 334 nm and a strong broad band at 371 nm. If the Bi3+ ion is asymmetrically coordinated, the Stokes shift of Bi3+ is large. Therefore, the blue emission and green emission originates from S6 and C2 symmetry respectively .
Figure 3 shows the energy level diagram of Bi3+ under S6 and C2 symmetry. The emission band with maximum peaks at 356 nm and 405 nm are attributed to 3Au → 1Ag and 3Eu → 1Ag of S6 respectively. On the other hand, the excitation peaks at 335 nm and 370 nm found at site S6 are ascribed to 1Ag → 3Au. The green emission band with maximum peak at 485 nm is due to 3B → 1A transition while the excitation peaks at 327 nm and 335 nm responsible for the green emission due to 1A → 3B transition under C2 site symmetry of Bi3+.
The Sr3Lu2(BO3)4:Bi3+ phosphors display efficient luminescence properties at ambient temperature. The luminesce properties of various concentrations of Bi3+ in the range of 0.005-0.15. in Sr3Lu2(BO3)4 host are shown in Figure 4. It was noticeable that the emission intensity increased with the increasing amount of Bi3+ concentration until 1 mol%, and began to decrease due to concentration quenching. Generally, concentration quenching of luminescence was attributable to the energy migration existing among the activator ions at high concentration. During this migration process, the excitation energy would be diminished at a quenching site, causing a decrease in the luminescence . Thus, the optimum concentration of Bi3+ in Sr3Lu2(BO3)4:Bi3+ was determined to be 0.01. It was also notable in the emission bands that the luminescent centers of Bi3+ at S6 and C2 quench simultaneously although they have different Stokes shift and concentration. C2 has higher concentration of Bi3+ than that of S6 which is essential for concentration quenching. However, higher Stokes shift leads to lower spectral overlap, offsetting the concentration quenching effect. Ju et al.  proposed that the energy transfer from Bi3+ under C2 site to Bi3+ under S6 site may be the reason to this phenomenon. As shown in Figure 3, the emission band of Bi3+ under C2 overlaps the excitation band of Bi3+ under S6. Conversely, if the emission band of Bi3+ under C2 does not overlap the excitation band of Bi3+ under S6 it cannot overlap its own excitation band which at situated at much higher energy. Moreover, the excitation spectra of Bi3+ at C2 coincides with the excitation spectra of Bi3+ at S6 from 300 nm – 350 nm although they have different absorption profiles but nonetheless, this is an obvious evident for Bi3+-Eu3+ energy transfer.
Figure 5 shows the normalized intensity of Sr3Lu2(BO3)4:Bi3+ phosphors excited at 327 nm, 335 nm and 370 nm. The emission intensity of the phosphors gradually increased with the increasing amount of Bi3+ until 0.01 mole and started to decrease when the concentration of Bi3+ was further increased. Also, the emission intensity with respect to Bi3+ concentration was consistent among the three excitation wavelengths.
Photoluminescence properties of Sr3Lu2(BO3)4:Eu3+phosphors
The photoluminescence of Sr3Lu2(BO3)4:Eu3+ phosphors are displayed in Figures 6. The emission spectra excited at 393 nm displays sharp peaks at 578 nm, 591 nm, 610 nm, 650 nm and 700 nm which were attributed to the 5D0 → 7FJ (J = 0,1,2,3,4) transitions of Eu3+ ions respectively. The highest peak which was situated at 610 nm produced a red-emitting phosphor. Due to the absence of inversion symmetry and the break of parity selection rules, 5D0 → 7 F2 electric dipole is the strongest transition . The excitation spectrum of Sr3Lu2(BO3)4:Eu3+ is also scrutinized. The broad band at 230 nm – 280 nm was due to the charge transfer band transition coming from ion O2− to Eu3+. The narrow bands and sharp peaks found at 300 nm – 500 nm were ascribed to the intra-configurational 4f-4f transitions of Eu3+.
Figure 7a shows the emission spectra of Sr3Lu2-y(BO3)4:yEu3+ phosphors with x = 0.20, 0.40, 0.60 and 0.80 under 393 nm excitation. The emission spectra are dominated by a large peak located at 610 nm ascribed to the 5D0 → 7 F2 transition this indicates that the Eu3+ ions occupy non-inversion symmetry sites which is in accordance to the point group C1. Figure 7b shows the relationship of the luminescence intensity at 610 nm as a function of its doping concentration (x) excited at 393 nm. Initially, the emission intensity increases as the doping concentration of Eu3+ increases due to the increase of absorption centers and reaches a maximum of 60 mol% and eventually drops with further increase in the concentration due to concentration quenching.
Photoluminescence properties of Sr3Lu1.99-y(BO3)4:0.01Bi3+, yEu3+ phosphors
The emission and excitation of spectra of Sr3Lu1.79(BO3)4:0.01Bi3+, 0.20Eu3+ phosphors are depicted in Figure 8. The emission spectra were investigated and analyzed by exciting the sample at 327 nm and 370 nm. The emission spectra contain broad bands from 350 nm - 580 nm which are attributed to the emission properties of Bi3+ while the sharp lines ranging from 580 nm – 650 nm are due to the Eu3+ intra-configurational 4f-4f located at transitions while the emission spectrum monitored at 410 nm contains two absorption peaks situated at which 334 nm and 371 nm. On the other hand, the excitation spectra monitored at 492 nm consist of two peaks located at 326 nm and 342 nm which is identical to the excitation spectra of Sr3Lu2(BO3)4:Bi3+. The excitation spectra monitored at 610 nm contains broad excitation bands at around 300 nm – 400 nm which could be ascribed to the absorption of Bi3+. The narrow peaks were due to the intra-configurational 4f-4f transitions of Eu3+ located at 593 nm (5D0 → 7 F0), 599 nm (5D0 → 7 F1), 610 nm (5D0 → 7 F2) and 631 nm (5D0 → 7 F3). Spectral overlap between the emission band of the sensitizer and absorption band of the activator is essential to have an efficient energy transfer . The spectral overlap of Bi3+ emission with the Eu3+ excitation spectra situated at 464 nm and 533 nm indicates successful energy transfer from Bi3+ to Eu3+.

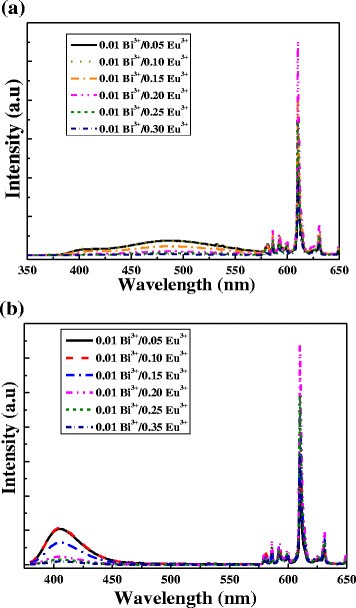

Figures 9a and 9b exhibit the emission spectra of Sr3Lu1.99-y(BO3)4:0.01Bi3+, yEu3+ phosphors with varying concentrations of Eu3+ (y = 0.05, 0.10, 0.15, 0.20, 0.25, 0.35) excited at 327 nm and 370 nm respectively. It was apparent that the energy absorbed by Bi3+ was transferred to Eu3+ and the emission of Bi3+ was quenched at higher Eu3+ concentration. Moreover, the figure indicates that the optimum concentration of Bi3+ co-activated Eu3+ was Sr3Lu1.79 (BO3)4:0.01Bi3+, 0.20Eu3+ and the intensity decreases eventually with a further increase in Eu3+ concentration.
Figure 10 further proves the energy transfer from Bi3+ to Eu3+. It is evident that the intensity of Bi3+ decreases with the increase in Eu3+ concentration. This shows that the energy absorbed by Bi3+ is transferred to Eu3+. Aside from spectral overlap, efficient energy transfer requires strong interactions it includes radiative transfer via photons which is almost distance independent and nonradiative transfer associated with the resonance between the acceptor and the donor that can be either an exchange interaction or multipolar interaction -. To calculate the critical transfer distance (Rc) between the activators Bi3+ and Eu3+ the following equation is considered:
where V = 1077.54 Å3 is the volume of the unit cell, Xc = 0.21 which is the total concentration of Bi3+ and Eu3+ at maximum luminescence intensity  and N = 8 which represents the number of Lu3+ ions . The critical distance of Bi3+ and Eu3+ was calculated to be 10.70 Å. In an exchange interaction, the critical distance should be shorter than 5 Å thus, it is rational to hypothesize that the mechanism involved is multipolar interaction -. According to Dexter’s energy transfer expressions of multipolar interaction - and Reisfeld’s transfer approximation , the following relation can be obtained:
where ηo and η are the luminescence quantum efficiency the sensitizer (Bi3+) in the absence and presence of the activator (Eu3+) respectively. The ratio of ηo/η can be estimated by the ratio of the relative luminescence intensities, Iso/Is without and with the activator. C is the total concentration of Bi3+ and Eu3+ ions and n = 6, 8, 10 which corresponds to dipole-dipole, dipole- quadrupole and quadrupole-quadrupole interaction -. The relationships between Iso/Is and CBi+Eu excited at 327 nm is illustrated in Figure 11(a), (b) and (c). It is evident that graph for n = 6 has the best-fitted linearity for both excitation. Therefore, the energy transfer from Bi3+ to Eu3+ was due to dipole-dipole interaction.

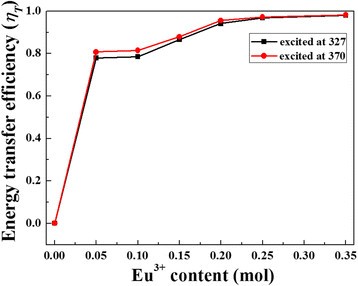

In order to further understand the energy transfer from Bi3+ to Eu3+ it is of high importance to discuss the energy transfer efficiency (ηT) from the sensitizer to the activator depicted in Figure 12 and expressed by:
where Is and Iso are the emission intensity of Bi3+ with and without Eu3+, respectively. The ηT of Sr3Lu1.99-y(BO3)4:0.01Bi3+, yEu3+ was calculated as a function varying concentration of Eu3+ which demonstrated that the energy transfer efficiency increases as the amount of activator Eu3+ increases.
With the intention of further investigating the energy transfer between Bi3+ and Eu3+, the photoluminescence curve of Bi3+ in Sr3Lu1.99-y(BO3)4:0.01Bi3+,yEu3+ phosphors excited at 327 nm were measured and the corresponding lifetime (τ) of S6 and C2 site of Bi3+ were calculated as depicted in Figure 13. Since the decay curves are not exponential, therefore the samples where characterized using the average lifetime (τ) and were calculated using the following equation:
where I(t) is the intensity at time t. In the inset of Figure 13, the corresponding lifetime (τ) of each samples were given and calculated as 111.83 μs, 107.94 μs, 89.76 μs, 13.90 μs, 9.93 μs and 7.58 μs for Sr3Lu1.99-y(BO3)4:0.01Bi3+,yEu3+ (y = 0.05, 0.10, 0.15, 0.20, 0.25, 0.30) respectively and it is evident that as the doping concentration of Eu3+ increases, the τ of Bi3+ decreases which confirms the energy is successfully transferred from the sensitizer to the activator ,.
The schematic energy transfer diagram between Bi3+ and Eu3+ is presented in Figure 14. Upon excitation at 327 nm, 335 nm and 370 nm the Bi3+ are stimulated from the ground state 1So to excited state 3P1. In Figure 3, it was presented that there are two sites in level 3P1, S6 and C2 site which are responsible for the blue and green emission of Bi3+. Subsequently, the absorbed energy can be transferred to the 5D4 and level of Eu3+ and the emission of Bi3+ is quenched as the concentration of Eu3+ increases. The excited state of Eu3+ at 5D4 relaxes non-radiatively to the lowest component of 5D accompanied by broad emission bands as shown in Figure 9a-b and successively returns to its ground state 7 F0.
The chromaticity coordinates of the phosphor Sr3Lu1.99-y(BO3)4:0.01Bi3+, yEu3+ and its corresponding relative intensity are calculated and presented in Table 1 and Figure 15, respectively. It depicts that the co-activation of Bi3+ and Eu3+ has increased the 5D0 → 7 F2 attributed to Eu3+ which was responsible for its red emission. At 327 nm excitation, the relative intensity of Sr3Lu1.79 (BO3)4:0.01Bi3+, 0.20Eu3+ was enhanced by 201% although, its CIE coordinates indicates that it has an orange hue. On the other hand, when excited at 370 nm, the intensity was improved by 265% and according to its CIE coordinates, it has a bright red hue. Figure 16 shows the PL spectra of composition-optimized SLBO:Bi,Eu phosphor and commercial red-emitting phosphor – Y2O3:Eu3+ (KX-681, Kasei co.) under excitation of 393 nm. The inset in Figure 16 displays the phosphor images of these two phosphors excited at 365 nm in UV box. The PL intensity of SLBO is about 32% of commercial phosphor. The measurement of quantum efficiency (QE) for SLBO and Y2O3:Eu3+ are carried out under excitation of 393 nm in the integrating sphere. The QE of SLBO and Y2O3:Eu3+ were determined to be 28% and 91%, respectively. It is believed that the QE could be further improved by tuning synthetic parameters, such as starting materials, synthetic approach and fluxes. The inset in Figure 16 also demonstrates that as-synthesized SLBO:Bi,Eu phosphor gives a bright and intense red hue.
Sr3Lu2(BO3)4:Bi3+, Eu3+ were effectively synthesized by a solid state reaction and pure phase phosphors were successfully synthesized. Changing the excitation wavelengths from 320 ~ 370 nm greatly affects the emission spectra of Sr3Lu2(BO3)4:Bi3+. Hence, the energy distribution of blue and green emission is highly dependent on the excitation wavelengths. The concentration quenching for Sr3Lu2-x(BO3)4:xBi3+, Sr3Lu2-y(BO3)4:yEu3+ and Sr3Lu2-x-y (BO3)4:xBi3+, yEu3+ are 1 mol%, 60 mol% and 20 mol%, respectively. The spectral overlap of the emission spectra of Bi3+ and the excitation band of Eu3+ depicts an efficient energy transfer from Bi3+ to Bi3+ Moreover, it was shown that the emission intensity of Bi3+ quenches as the concentration of Eu3+ increases hence, the energy absorbed by Bi3+ was transferred to Eu3+. The critical distance of Eu3+ was determined to be 10.7 Å. The relative intensity of Sr3Lu1.79(BO3)4:0.01Bi3+, 0.20Eu3+ at 327 nm and 370 nm were dramatically enhanced by 201% and 265%, respectively. The results indicate that Sr3Lu2(BO3)4:Bi3+, Eu3+ is a potential novel red-emitting UV LED phosphor for display application.
IVBM and PCL are both taking their Master’s Degree in Chung Yuan Christian University, ROC Taiwan. WRL has a Ph.D. degree and is currently an assistant professor in Chung Yuan Christian University and is affiliated with Industrial Technology Research Institute of Taiwan (ITRI), ROC Taiwan.
Liu WR, Lin CC, Chiu YC, Yeh YT, Jang SM, Liu RS: ZnB2O4:Bi3+, Eu3+: a highly efficient, red emitting phosphor. Opt Express 2010, 18: 2946–2951. 10.1364/OE.18.002946
Zhou H, Yu X, Qian S, Shi R, Wang T, Yang P, Yang Y, Qui J: Photoluminescence properties of Eu3+ and Bi3+ co-doped Ca3SnSi2O9 phosphors through energy transfer. MRS 2013, 48: 2396–2398. 10.1016/j.materresbull.2013.02.007
Liu WR, Yeh CW, Huang CH, Lin CC, Chiu YC, Yeh YT: Liu RS: (Ba, Sr) Y2Si2Al2O2N5:Eu2+: a novel near-ultraviolet converting green phosphor for white-light emitting diodes. J Mat Chem 2011, 21: 3740–3744. 10.1039/c0jm03573d
Park WJ, Jung MK, Yoon DH: Influence of Eu3+, Bi3+ co-doping content on photoluminescence of YVO4 red phosphors induced by ultraviolet excitation. Sensors Actuators B 2007, 126: 324–327. 10.1016/j.snb.2007.02.033
Ju G, Hu Y, Chen L, Wang X, Mu Z, Wu H, Kang F: White-light generation and energy transfer in Y2O3:Bi, Eu phosphor for ultraviolet light-emitting diodes. J Electrochem Soc 2011, 10: J294-J299. 10.1149/1.3615934
The authors declare that they have no competing interests.
IVBM performed the experiment, analyzed the data and wrote the paper. PCL refined the graphs, tables and other essential information about this paper. WRL guided and scrutinized all the experiments and edited the paper. All the authors discussed and analyzed the results and commented on the manuscript. All authors read and approved the final manuscript.
